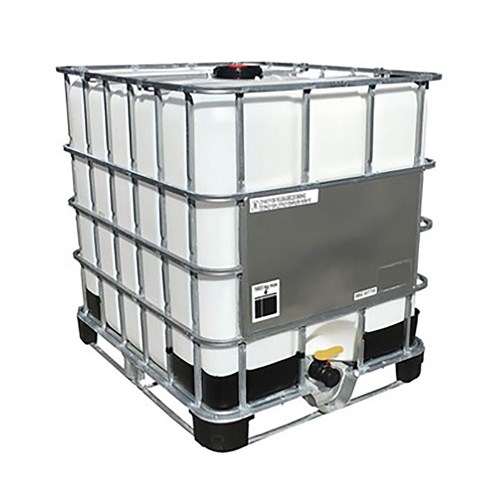

FOXX Blade Pink Semi-Synthetic Metalworking Cutting & Grinding Coolant – 1000L IBC

• Designed to be used in machines and operations where long fluid life is needed, such as in large individual machine or central system reservoirs.
• Effective lubrication and cooling properties keep parts and tools cool, extend tool life and allows for high speeds and feeds that increase production
• Efficiently settles chips and grit
• Exceptional rancidity control
• Excellent corrosion control with organic and inorganic corrosion inhibitors




FOXX Blade is recommended for moderate-duty machining and grinding of ferrous metals, and some non-ferrous metals.

Metals: Cast Iron, Nodular Iron, Carbon Steels, High Speed Steel, High Alloy Steels, Stainless Steels, Aluminum

Duty Range: Light to Moderate-duty

Typical Properties of FOXX BLADE

RECOMMENDED STARTING DILUTIONS

FOR INDUSTRIAL USE ONLY

REFRACTOMETER CALIBRATION AND INSTRUCTION FOR USE

1. Ensure that the refractometer (figure 1), water and metalworking fluid are at room temperature.
2. Place a few drops of water between the plastic cover and the prism.
3. Hold the refractometer horizontally and point it at a light source.
4. Look into the eyepiece and adjust the scale-calibrating screw until the boundary line, which separates the light and dark areas of the scale are aligned to zero “0” on the scale.
5. Lift the plastic cover and dry the prism with a clean, dry cloth.
6. Place one or two drops of the metalworking fluid on the prism and close the plastic cover.
7. Read the number on the scale at the point where the boundary line separates the light and dark areas on the scale (Figure 2). For the concentration, multiply this number by the refractometer factor.

Figure 01	Figure 02
EXAMPLE: FOXX Blade Refactometer Factor = 3.1 Take the Refractometer Scale Reading of 1.6 (i.e. Figure 2), multiplied by the Refractometer Factor of 3.1 = 5.0% mix concentration.

FOXX Blade to be mixed with water for use (add concentrate to water). Add no other substances to the concentrate or mix unless approved by FOXX Technical Services.

For concentration analysis, use Total Alkalinity Titration Procedure, BCG Titration Procedure, CIMCHEK™ Test Strip, or Refractometer.
